18m ² Small Comfortable Hot-dip Galvanized Main Structure Space Capsule House

Brand Name:	FRAMER
Model Number:	FX-3
MOQ:	1
Price:	$18888
Payment Terms:	,T/T
Supply Ability:	50 Pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, CE

Dimensions::

(L)5600mm X (W)3300mm X (H)3200mm

Building Area:

18m²

Weight::

≈ 3.8 Tons

Power:

10KW

Main Frame:

Galvanized Steel Frame Structure

Shell:

Aluminum Alloy Aluminum Single Board

Surface Treatment Of Shell:

Metal Fluorocarbon Paint Baking Paint

Ventilation System::

Air Conditioner

Fresh Air System:

Standard Configuration

Standard Configuration:

Water Purification System

Product Description

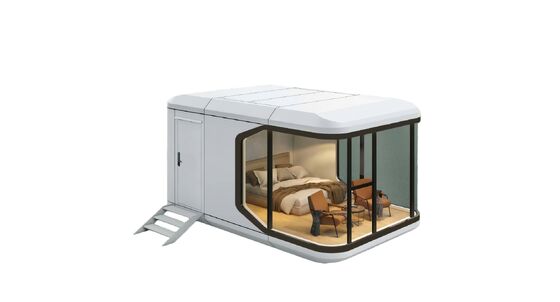

18m ² Small Comfortable Hot-dip Galvanized Main Structure Space Capsule House

Our 18 sqm space capsule features a hot-dip galvanized steel structure with an exterior finished in fluorocarbon aluminum veneer.

It boasts high strength and excellent shape retention, and is resistant to corrosion from natural factors such as ultraviolet (UV) rays and temperature fluctuations.

Features:

Product Name:Space Mobile House
Model:FX-3
Main frame material:Hot-dip galvanized steel
External material of cabin:fluorocarbon-coated aluminum alloy
Surface treatment of shell:metal fluorocarbon paint baking paint
Thermal insulation and waterproof layer:polyurethane insulation layer
Building area:18m²
Occupancy:2 people
Specification:(L):5.6M Width(W):3.3M Height(H):3.2M
Total net weight: ≈ 3.8 tons
Power:10KW

Main peripheral structure:

Model	FX-3
Shell	Aluminum Alloy Aluminum Single Board 2.0
Surface treatment of shell	Metal fluorocarbon paint baking paint
Thermal insulation and waterproof layer	Polyurethane insulation layer
Panoramic balcony	6+1.52+6 tempered glass protective fence
Entrance door	stainless steel customized door
Entry lock	outdoor waterproof intelligent door lock
Electrical equipment room	air conditioning/water heater
Dimensions:	(L)5600mm x (W)3300mm x (H)3200mm
Area	18m²
Weight	≈ 3.8 tons

Indoor configuration

Home shoe cabinet	Standard configuration
Electric sunshade for bedroom skylight	Standard configuration
Bedroom ceiling (aluminum alloy aluminum veneer)	Standard configuration
Bedroom wall (advanced environmentally friendly carbon crystal panel)	Standard configuration
Bedroom floor (6cm SPC premium stone crystal locking floor)	Standard configuration
Bedroom surround ambient light strip	Standard configuration
Bedroom brand tube lamp lighting	Standard configuration
Toilet ceiling (bamboo wood fiberboard)	Standard configuration
Whole house brand cable 1.5/2.5/4/10 square/Category 6 network cable	Standard configuration
Customized washbasin/tray/mirror/cabinet/floor drain for rock slab	Standard configuration

Advantages:

Whole-house water purification system is fitted throughout:

Filtration of large particulate impurities: Effectively removes large particulate contaminants such as sediment, rust and suspended solids from water.

Extended service life: Prolongs the service life of water-using equipment including washing machines, water heaters and water purifiers, and reduces clogs and damage.
