14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House

Name: 14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House
Brand: GUANGZHOU FRAMERPODS CO.,LTD
SKU: Folding Container House
Price: 1888 USD
Availability: InStock

Brand Name:	FRAMER
Model Number:	Folding Container House
MOQ:	1
Price:	$1888
Payment Terms:	,T/T
Supply Ability:	100 Pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, CE

Dimensions:

L5800mm*W2440*H2500

Internal Dimensions:

5660L*2320W*2380H

Building Area:

14m²

Weight:

≈ 1.2 Tons

Main Frame:

Carbon Steel

Color:

White(customizable)

Door:

High-quality Security Door

Window:

Plastic Steel Anti-theft Integrated Window

Electrical System:

All Electrical Products Comply With CE Certification

Main Incoming Line:

4mm² National Standard Flexible Copper Cable, Equipped With 1 Piece Of 20A Circuit Breaker

Socket Incoming Line:

2.5mm², With 3 Sets Of 3-gang Sockets And 2 Light Fixtures

Product Description

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction

Folding Container House

Suitable for medical disaster relief, military barracks and post-earthquake resettlement.

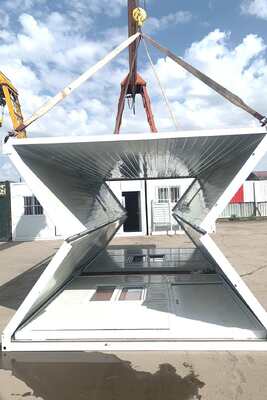

features quick and easy assembly and disassembly, which saves costs on transportation, assembly and disassembly.

It is aesthetically pleasing, durable, low-carbon, green and eco-friendly.

Features:

Product Name:Folding Container House
Main frame material:Q235 carbon steel
External roof:Galvanized sheet
Back wall panel:65mm composite board (basalt wool)
Overall frame protective coating:Electrostatic spraying/high gloss white
Floor:Fire-resistant Magnesium Oxide Flooring
windows:plastic steel anti-theft integrated window,glass thickness 2mm (warm white)
Fire safety standards:the entire container meets Class A fire resistance standards
Building area:14m²
External dimensions(mm):5800L*2440W*2500H
Internal dimensions(mm):5660L*2320W*2380H
Total net weight: ≈ 1.2 tons

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 0

Main peripheral structure:

Model	Folding Container House
Top beam:	Q235B rectangular square tube 60x60x1.3mm
Bottom beam:	Rectangular square tube 60x140x1.3m
Front and rear main beam:	Special-shaped square tube 60x80x1.2mm
Side wall frame:	P-shaped square tube 40x60x1.2mm
Top/Bottom load:	Rectangular square tube 40x40xl.2mm
External roof:	Corrugated panel 0.4mm
Internal ceiling:	Color steel single board V831*0.25mm
Overall frame protective coating:	Electrostatic spraying/high gloss white
Wall Panels:	50mm composite board 0.23mm+basalt wool(bulk density 50kg)+0.23mm
High-quality security door size:	970mm*1970mm(warm white)
Back walk panel:	65mm composite board 0.23mm+basalt wool(bulk density 50kg)+0.23mm

Advantages:

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 1

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 2

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 3

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 4

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 5

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 6

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 7

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 8

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 9

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 10

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 11

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 12

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 13

14m ² Medical Disaster Relief, Army Barracks, Post-disaster Reconstruction Folding Container House 14
