Outdoor Space Capsule
Created with Pixso.

20ft Double Wings Sloping Roof Expandable Folding House For Family Living

20ft Double Wings Sloping Roof Expandable Folding House For Family Living

20ft Double Wings Sloping Roof Expandable Folding House For Family Living

Brand Name: FRAMER
Model Number: 20ft expandable folding house
MOQ: 1
Price: $11888
Payment Terms: ,T/T
Supply Ability: 100 Pcs/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001, CE
Dimensions:
L5900*W6300*H2480MM
Internal Dimensions:
L5640*W6140*H2240MM
Folding Size:
L5900*W2200*H2480MM
Main Frame:
Fully Galvanized Steel Structure
Building Area:
37m²
Weight:
≈ 3.7 Tons
Power:
12KW
Unit Type:
Customizable
Plumbing Pipe:
Water Pipe,hot Water Pipe, Drain Pipe,sewage Pipe
Product Description

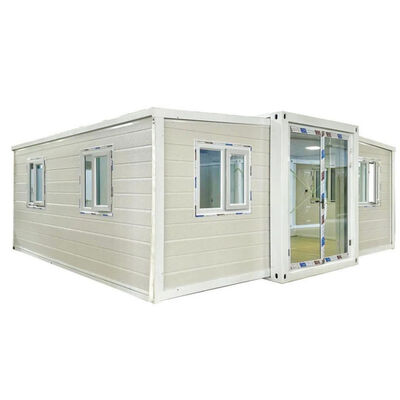

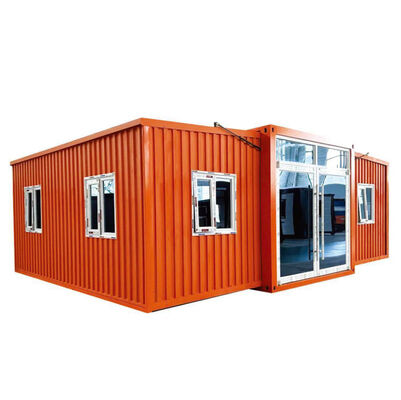

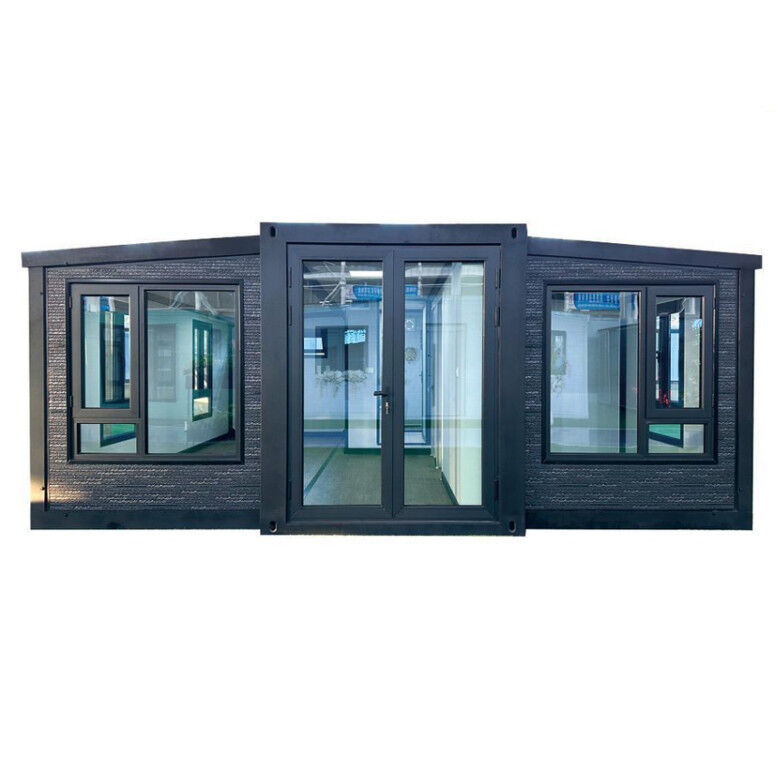

 20ft Double Wings Sloping Roof Expandable  Folding House For Family Living




  • The 20ft Expandable Folding House adopts a double wing sloping roof design, which improves waterproofing and insulation effects.


  • The overall construction is made of high-quality materials, and the steel structure ensures durability and stability.


  • The unfolded size is 37m², which is very suitable for a small family or couple to live in.


Features:

  • Product Name: Expandable folding house
  • Main frame material:Fully galvanized steel structure
  • Top of house:EPS color steel+nano insulation board
  • Unfolded area:37m²
  • Expand size:L5900*W6300*H2480mm
  • Internal size:L5640*W6140*H2240mm
  • Folding size:L5900*W2200*H2480mm
  • Loading quantity:One 40HQ can hold 2 sets

20ft Double Wings Sloping Roof Expandable Folding House For Family Living 020ft Double Wings Sloping Roof Expandable Folding House For Family Living 120ft Double Wings Sloping Roof Expandable Folding House For Family Living 2

20ft Double Wings Sloping Roof Expandable Folding House For Family Living 3

Main structure:

Model
20ft expandable folding house
Steel column:
Galvanized bent parts 2.5mm thick
Bottom longitudinalsecondary beam:
80*80*3.0mm galvanized square tube
Bottom frame:
Bottom frame 60*80*2.5mm galvanized square tube
Main ceiling panel+external ceiling:

Double-layer 50mm thick EPS color steel+nano insulation board
Spray paint:

Electrostatic spraying+anti-corrosion treatment
Wall material:

65mm thick,0.35mm onboth sides,EPS composite board
Center floor :

18mm thick freproof cement fiber floor

Entrance door:

high-end single opening steel door(Optional)



Advantages:

20ft Double Wings Sloping Roof Expandable Folding House For Family Living 4



20ft Double Wings Sloping Roof Expandable Folding House For Family Living 5

20ft Double Wings Sloping Roof Expandable Folding House For Family Living 6

20ft Double Wings Sloping Roof Expandable Folding House For Family Living 7

20ft Double Wings Sloping Roof Expandable Folding House For Family Living 8

20ft Double Wings Sloping Roof Expandable Folding House For Family Living 9
