30ft Sloping Roof Expandable Folding House with 56m² Building Area, Fully Galvanized Steel Structure, and Customizable 3 Bedroom Layout

Brand Name:	FRAMER
Model Number:	30ft expandable folding house
MOQ:	1
Price:	$16888
Payment Terms:	,T/T
Supply Ability:	100 Pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, CE

Dimensions:

L9000*W6220*H2480MM

Internal Dimensions:

L8740*W6060*H2200MM

Folding Size:

L9000*W2200*H2480MM

Main Frame:

Fully Galvanized Steel Structure

Building Area:

56m²

Weight:

≈ 6 Tons

Power:

12KW

Unit Type:

3 Bedroom 1living Room 1 Bathroom （ Customizable）

Voltage:

Customizable

Highlight:

56m² Building Area Expandable Folding House

Fully Galvanized Steel Structure Sloping Roof Container

Customizable 3 Bedroom Layout Prefabricated Modular Home

Product Description

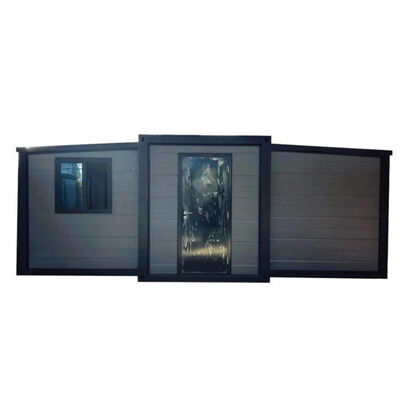

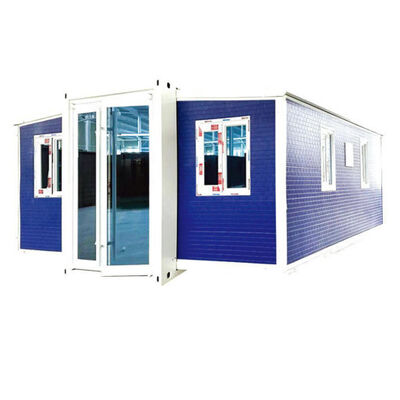

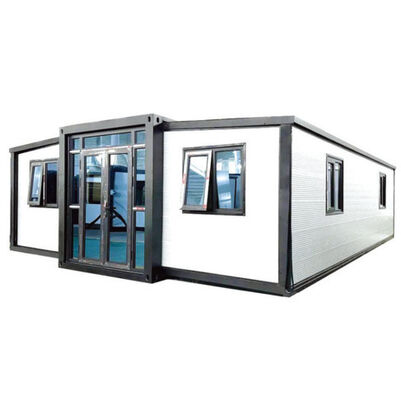

30ft Sloping Roof Expandable Folding House - One Living Room Three Bedroom

This innovative expandable folding house features mechanical expansion (double wing unfolding) to create a modern prefabricated structure that doubles its usable area when deployed. Designed to overcome the limitations of traditional housing, these units offer compact transportation dimensions while providing spacious living areas upon expansion.

Ideal for various applications, these expandable container houses can be customized as three-bedroom living spaces, dormitories, offices, homestays, cafes, medical stations, and more. Experience the unique flexibility and convenience of expandable container housing solutions.

Product Specifications

Product Name: Expandable folding house
Main Frame Material: Fully galvanized steel structure
Wall Material: 65mm thick EPS color steel sheet
Unfolded Area: 56m²
Expanded Size: L9000 × W6220 × H2480mm
Internal Size: L8740 × W6060 × H2200mm
Folded Size: L9000 × W2200 × H2480mm
Loading Capacity: One 40HQ container holds 1 set

Main Structure Details

Model	30ft expandable folding house
Skeleton Polishing Process	After complete welding, polished for better plastic powder adhesion and increased service life
Bottom Skeleton	Reinforced for stability - no shaking sensation when walking
Bottom Frame	60×80×2.5mm galvanized square tube
Main Ceiling Panel + External Ceiling	Double-layer 50mm thick EPS color steel with nano insulation board
Spray Paint	Electrostatic spraying with anti-corrosion treatment
Wall Material	65mm thick, 0.35mm on both sides, EPS composite board
Bathroom	Polyurethane insulation at the bottom (optional)
Bathroom Bottom Guard	1.2mm thick stainless steel plate (optional)
Color	Customizable
Sockets	Customizable
