38.4㎡ Double Decker Triangular House with Galvanized Steel Structure and Smart Home System

Brand Name:	FRAMER
Model Number:	FV-6
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	50 Pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, CE

Dimensions::

First Floor(L)5550 X (W)4050 X (H)2550mm/Second Floor(L)5550 X (W)2850 X (H)2550mm

Building Area:

First Floor22.4m²/Second Floor 15.8m²

Weight::

≈ 8 Tons

Power:

10KW

Main Frame:

Galvanized Steel Frame Structure

Shell:

Aluminum Alloy Aluminum Single Board

Surface Treatment Of Shell:

Metal Fluorocarbon Paint Baking Paint

Ventilation System::

Air Conditioner

Fresh Air System:

Standard Configuration

Standard Configuration:

Water Purification System

Product Description

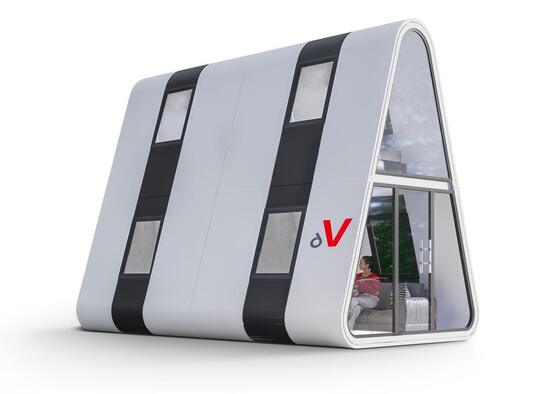

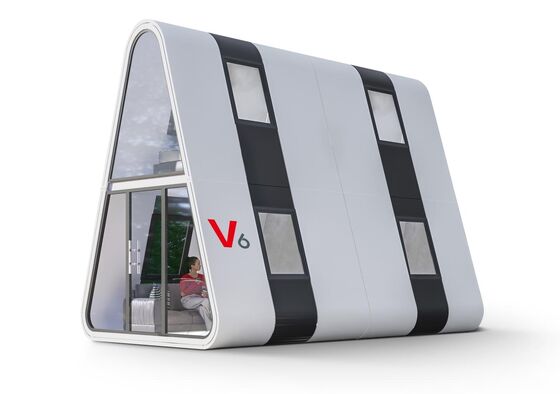

38.4㎡ Double Decker Type A Triangular House For Homestay & Hotel

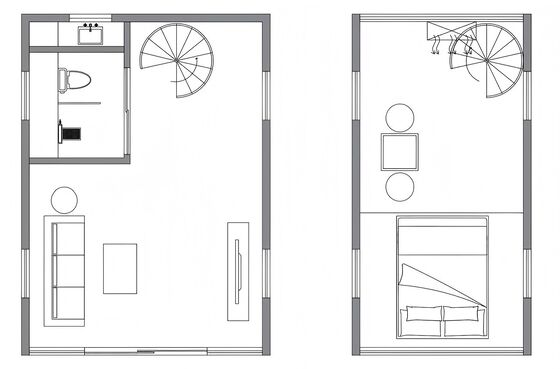

This triangular spacecraft-inspired structure features a hot-dip galvanized steel frame with fluorocarbon aluminum veneer exterior. The total area of 38.4 square meters is distributed across two floors: 22.4 square meters on the first floor and 15.8 square meters on the second floor. The ground level serves as a living area, while the upper floor bedroom is ideally suited for couples seeking vacation accommodation.

Product Specifications

Product Name: Space Mobile House
Model: FV-6
Main Frame Material: Hot-dip galvanized steel
External Material: Fluorocarbon-coated aluminum alloy
Surface Treatment: Metal fluorocarbon paint baking
Thermal Insulation: Polyurethane insulation layer
Building Area: 38.4m²
Occupancy: 2 people
Specifications: First floor: 5550 × 4050 × 2550mm | Second floor: 5550 × 2850 × 2550mm
Total Net Weight: ≈ 8 tons
Features: Equipped with spiral staircase

Peripheral Structure Details

Component	Specification
Shell	Aluminum Alloy Aluminum Single Board 2.0
Surface Treatment	Metal fluorocarbon paint baking paint
Glass Curtain Wall	6+15A+6 hollow Lowe tempered glass
Panoramic Balcony	6+1.52+6 tempered glass protective fence
Entrance Door	Stainless steel customized door
Entry Lock	Outdoor waterproof intelligent door lock
Electrical Equipment Room	Air conditioning/water heater
Dimensions	First floor: 5550 × 4050 × 2550mm Second floor: 5550 × 2850 × 2550mm
Area	38.4m²
Weight	8 tons

Standard Indoor Configuration

Feature	Inclusion
Spiral Staircase	Standard configuration
Electric Sunshade for Bedroom Skylight	Standard configuration
Bedroom Ceiling	Aluminum alloy aluminum veneer
Bedroom Wall	Advanced environmentally friendly carbon crystal panel
Bedroom Floor	6cm SPC premium stone crystal locking floor
Power Control	Plug in card power/remove card power off
Air Conditioning	Split type 1.5 horsepower (Midea)
Bathroom	High end intelligent electric water heater and showerhead
Electrical Wiring	Whole house brand cable 1.5/2.5/4/10 square/Category 6 network cable
Bathroom Fixtures	Customized washbasin/tray/mirror/cabinet/floor drain for rock slab

Key Advantages

Smart Home Integration: The entire house features intelligent modules with smart home systems and voice-controlled responses for lighting, curtains, skylights, air conditioning, and fresh air systems across different areas.

Innovative Design: The advanced design concept draws inspiration from interstellar travel cabin spaceships, creating a sci-fi aesthetic that reflects forward-thinking concepts for future human habitation in outer space.

Product Gallery
